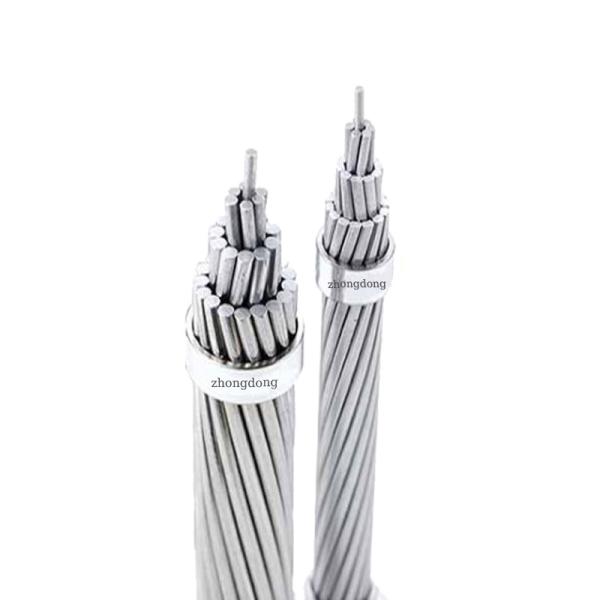

    Overhead Bare Conductor ACSR Steel Reinforced Aluminum AAC AAAC Conductor

    Ask Lasest Price
    Brand Name : Zhongdong
    Model Number : AAAC
    Certification : CCC,IEC,VDE,TUV,ISO
    Price : Negotiable
    Payment Terms : ,L/C,T/T
    Supply Ability : 500KM/Week
    Delivery Time : 7-30 days based on different Qty
    • Product Details
    • Company Profile

    Overhead Bare Conductor ACSR Steel Reinforced Aluminum AAC AAAC Conductor

    Overhead Bare Conductor ACSR Steel Reinforced Aluminum AAC AAAC Conductor

    Application


    Bare conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.

    The inductive effect of the ACSR's steel core is eliminated, hence increasing the operating efficiency of the line.

    Brief Description

    1. This conductor is made from aluminium-magnesium silicon alloy of high electrical conductivity containing enough magnesium silicide to give it better mechanical properties after treatment. These conductors are generally made out of aluminium alloy 6201.
    2. AAAC CONDUCTOR has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR CONDUCTOR on equal diameter basis.

    Physical contents of alluminium alloy

    1. Density - 2.70 kgm/dm3 at 20°C
    2. Coefficient of Linear Expansion - 23 x 10-6 / °C
    3. Resistivity - 0.0326 Ohms mm2/m at 20°C
    4. Constant Mass Temperature Coefficient (a) - 0.00360/ °C
    5. Material - Heat treated Al. Mg. Si. Alloy

    Specification

    All Aluminium Alloy Conductors ASTM B 399

    AREA

    Stranding and wire diameter

    Approx. overall diameter

    Weight

    Nominal Breaking Load

    Nom. DC resistance at 20 Deg.

    Nominal

    Actual

    AWGorMCM

    (mm2)

    (mm)

    (mm)

    (kg/km)

    (kN)

    (ohm/km)

    6

    13.3

    7/1.554

    4.67

    37

    4.22

    2.5199

    4

    21.15

    1/1.961

    5.89

    58

    6.71

    1.5824

    2

    33.63

    7/2.474

    7.42

    93

    10.68

    0.9942

    1/0

    53.48

    7/3.119

    9.36

    148

    16.97

    0.6256

    2/0

    67.42

    7/3.503

    10.51

    186

    20.52

    0.4959

    3/0

    85.03

    7/3.932

    11.8

    234

    25.86

    0.3936

    4/0

    107.23

    7/4.417

    13.26

    296

    32.63

    0.3119

    250

    126.66

    19/2.913

    14.57

    349

    38.93

    0.2642

    300

    152.1

    19/63.193

    15.97

    419

    46.77

    0.2199

    350

    177.35

    19/3.447

    17.24

    489

    52.25

    0.1887

    400

    202.71

    19/3.686

    18.43

    559

    59.74

    0.1650

    450

    228

    19/3.909

    19.55

    629

    67.19

    0.1467

    500

    253.35

    19/4.120

    20.6

    698

    74.64

    0.1321

    550

    278.6

    37/3.096

    21.67

    768

    83.80

    0.1202

    600

    303.8

    37/3.233

    22.63

    838

    91.38

    0.1102

    650

    329.25

    37/3.366

    23.56

    908

    97.94

    0.1016

    700

    354.55

    37/3.493

    24.45

    978

    102.20

    0.0944

    750

    380.2

    37/3.617

    25.32

    1049

    109.60

    0.0880

    800

    405.15

    37/3.734

    26.14

    1117

    116.80

    0.0826

    900

    456.16

    37/3.962

    27.73

    1258

    131.50

    0.0733

    1000

    506.71

    37/4.176

    29.23

    1399

    146.10

    0.0660
